Pan Depth: 7-1/2”
Pan Capacity: 5 Quarts (4.7 Liters)
System Capacity: 6 Quarts (5.7Liters)
Stroke Clearance: 4.125" (With Steel Rods, Check Crank Scraper Before Final Install)

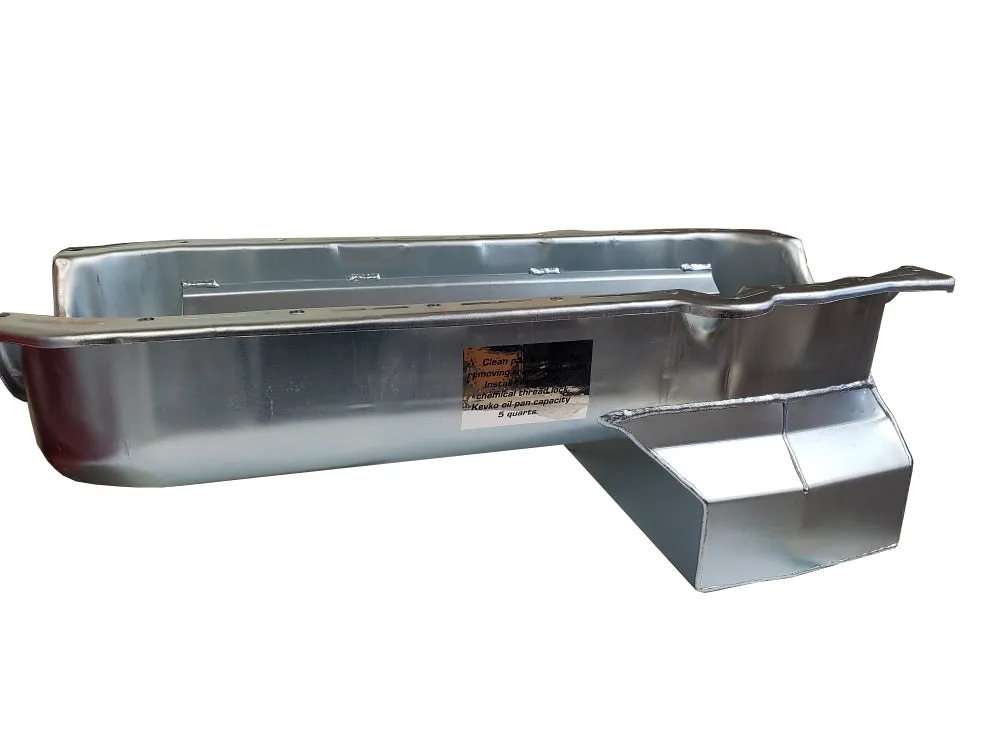

Description: 6.5" Long, 11.5" Wide, 7.5" Deep Sump
We have recently made modifications to this pan to use the factory dipstick for both LH and RH Dipsticks. You will no longer need a universal dipstick with this pan.
- Shallowest Chevy II / Nova pan on the market
- Clears any aftermarket exhaust and filter
- Fits most stock starters, fits all mini starters
- Clears 4.125 Stroke

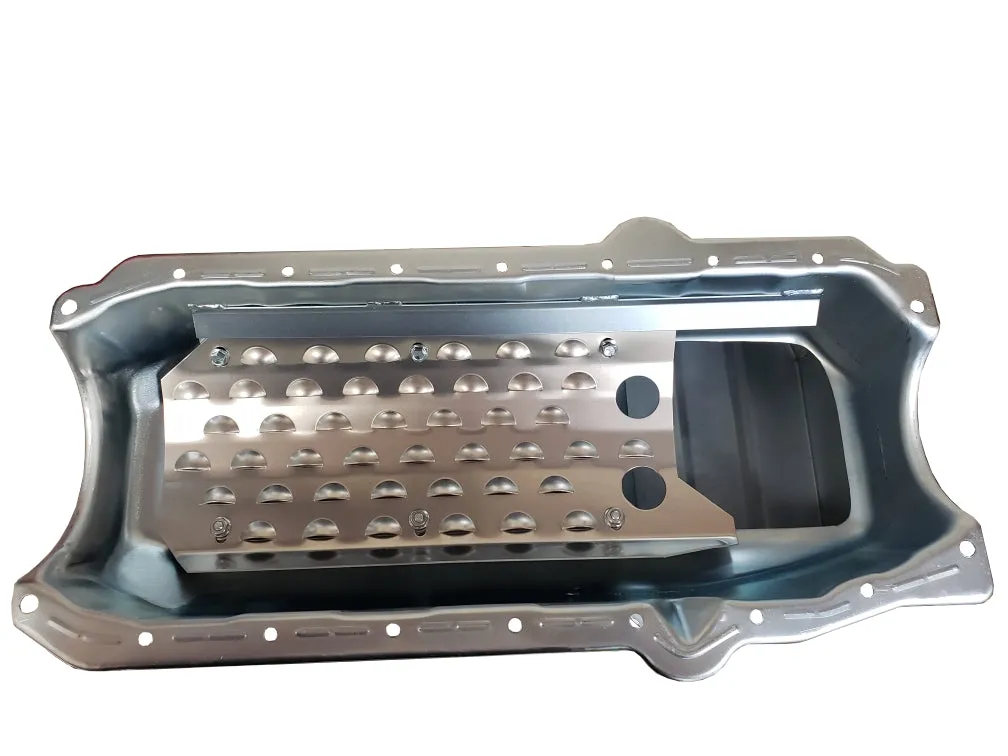

- Full Length aluminum windage tray
- Fits 1962-67 Chevy II & Nova
| Oil Pump/Pickup Tube Reference | |||
| Pump | Pickup Diameter | Kevko Pickup Tube | |
| M55, M55A, 10553ST | 5/8 | ||
| M155, 10554ST | 3/4 | ||
| M55HV, 10550ST | 5/8 | ||
| M155HV, 10551ST | ¾ | ||
| 10555ST, 10552ST | ¾ Bolt On |
