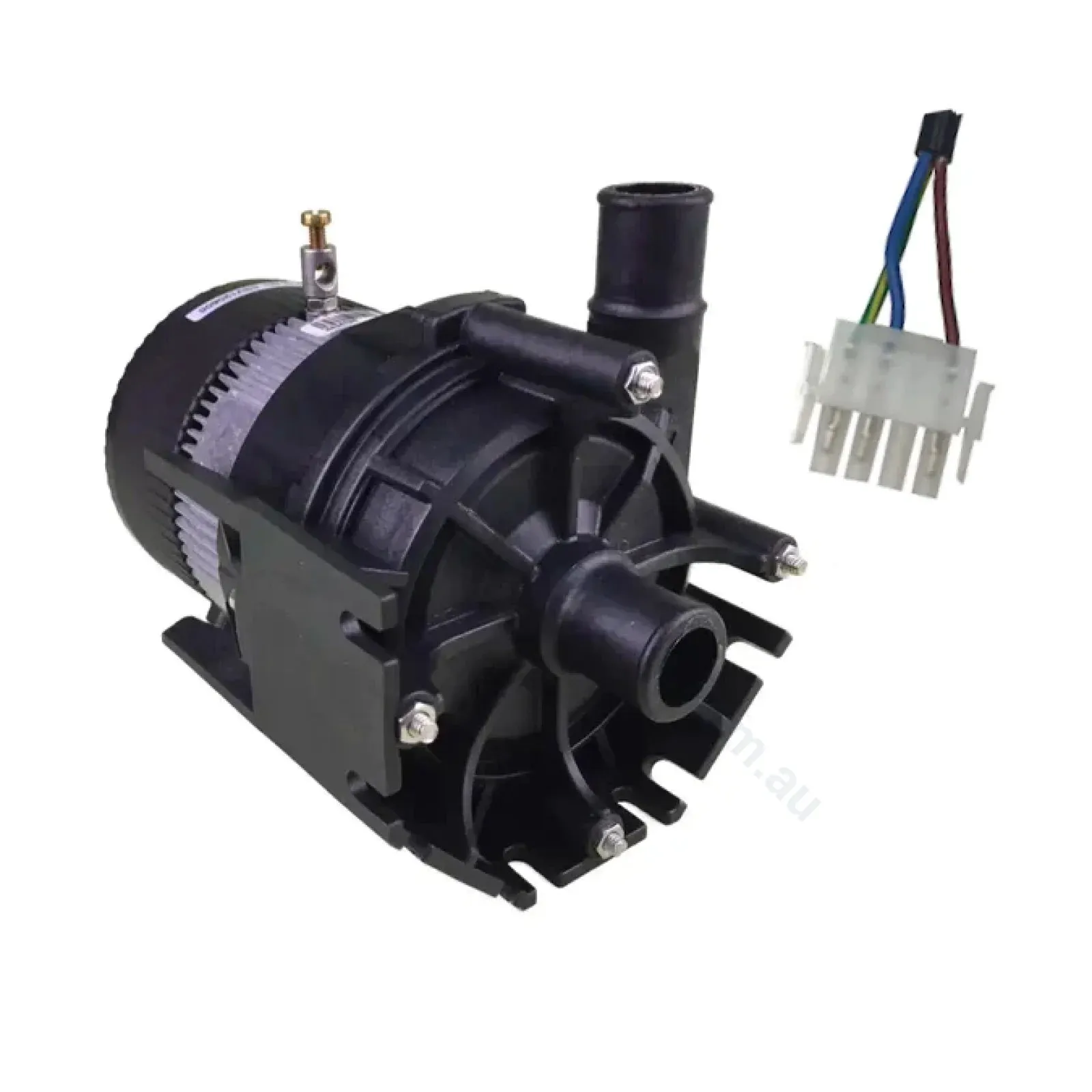

Name: E10 Spa Circulation Pump - GENUINE ITT Laing Xylem Goulds Thermotech
SKU: 547554

Genuine E-10 Laing-Thermotech Circ Pump for spas. Previous pumps have been branded Xylem, Laing, ITT, Thermotech & Goulds. This spa circulating pump has been used in many spas since the 1990s. Current E10 model supersedes all previous black, red, blue models used in spas.

Physically Kept In Stock Unlike Most Drop-Shippers. Fast Shipping or Pick-Up.

Comes with a choice of Mini JJ (Circ), AMP, C-38 (3-pin) plugs, or blank cord. Other plugs are no longer available. A qualified person can re-use old cord if in good condition. Note that any internal damage, or incorrect cord changes are not covered by warranty.

These are the same pump found in Sundance Spas, Monarch Spas, Jacuzzi, Hot Spring, Sweetwater Spas, Dimension One Spas, Southwest Spas, Sierra Spas, Heritage Spas, Lanark, Caldera and many others.

This is a genuine E-10 pump with Australian Electrical approvals. Approval ESV180553. We are aware of others selling a lower-spec unapproved import.

This pumps can also replace the E3 & Laing pumps, but have a higher flow rate for better filtration.

Features & Specifications:

The new E10 uses 40% less energy and runs 40% cooler than previous models.
Super cheap to run - 65w power consumption
60 lpm (15 gpm) flow maximum
6.5m head maximum (double the flow of the older SM959 model)
29PSI / 2 bar
3/4" / 19mm barb connections
L: 150mm x W: 110mm x H: 130mm
140°F / 60°C Max water temperature
<40 db noise level
Head can be rotated.
Pump Housing & Impeller: glass reinforced Nylon
O-ring: EPDM
Bearing: Al Ceramic
Other Wetted Parts: 316 Stainless Steel

Documentation:

| | |

Warranty: 1 Year Return to Base. .

Ensure pump is mounted 100% horizontally level. If pump sits crooked, the impeller may rub.
Remove any strainers as they can restrict flow, damaging the pump.
Do not use in salt water applications.
Avoid using clarifiers in the water, as they can invisibly block the cartridge filter.
Ensure water is correctly balanced. Avoid Bromine Tablets or Chlorine Tablets. .

Also Supersedes & Replaces Part Numbers Below for Spa Use:

Goulds Water Technology / ITT Laing Thermotech / Sundance / Hot Spring / Watkins
All SM303 / SM909 / SM959 SERIES
Part Numbers & Model Numbers: E5-NSHN2W14, E5-NSHNNN2W14, NSHNDNN2-05, SM1212NHW-19, E10-NSHN2W-20, E10-NSHNNN2W-20, E10-NSHN2W-20 1", SM1212NHW-21, SM909NHW-14, E10-NSHN2W, SM909NHW-18, SM909NHW-26, SM959NHW26-88, SM959-26, E10-NSHN1W-19, SM-959-NHW-26, Hot Products E10, E10-NSHDNN2W-05, 73379, 73479, Watkins PN: 301393, 301393F, 1039901, 6080U5016, 6080U0021, E10-, P3020, 73369 / 301392 (Watkins), SM-1212-NHW-1", 74079, 73979, SB-909, LTI 7069.9, Caldera / Watkins 74427, SM-909-NHW, 73349, Sundance 6000-125, SM303, SM909, SM959, am 959 nhw, SilentFlo 5000, 73989, E3 LAING CIRCULATION PUMP 10-0126 SM-303-NHT, Model M SM-403-NHW, 99129, LAING 68219, PU-L68219-3, L68219, 63229
Spa Industries, Signature: APUMCIRLAE
Jacuzzi Circ Pump 6000-125E - E10 240V 50 60 Hz. Used on Jacuzzi J-300 - ALL 2002 Models: J-320, J-325, J-330, J-335, J-340, J-345, J-350, J-355, J-360, J-365, J-370, J-375, J-380, J-385.
Can also be used in place of Jacuzzi Products Co. Nonsubmersible Circulation Pump UP15-65RES7, P/N: 98979740P1, 6000-125EW, used on J-310™ / J-320™, 2002-2004; J-315™ / J-325™, 2012 (Current models), J-270™ / J-280™Series, 2007-2011
